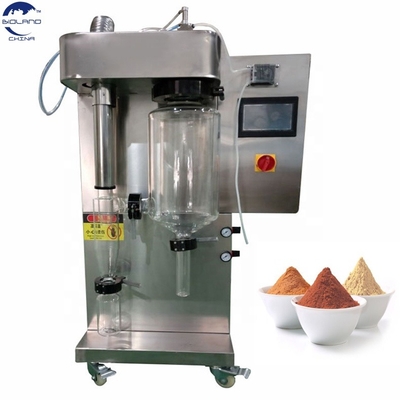

BL-015 lab scale spray drying is our latest type which is the result of our constant innovation in this field of laboratory scale spray drying systems through longtime cooperation between well-known lab and Shanghai famous university. It assembles many of new design, for example, small shape for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and function are controlled by PLC, English language.
Spray drying involves the atomization of droplets in a spray from a liquid feedstock and the droplets contact with hot air in a drying chamber. The sprays are produced by two-fluid nozzle atomizers. Evaporation of moisture from the droplets and formation of dry powder are proceeded on controlled temperature and airflow conditions. Powder is discharged from the drying chamber and mostly is collected by the cyclone separator.
lab scale spray dryer ,various fields where the production of a free powder sample is required.
It is highly suited for the continuous production of dry solids in either powder, granulate oragglomerate form from liquid feedstocks as solutions, emulsions and pumpable suspensions.
1. Chemical industry: hydrated silica, concrete additives, barium sulfate, basic chromic sulfate, alumina, titania, kaolin, ferrite, steatite, carbide, fertilizers, dyes, scouring agents, ACR assistants, latex, water purifiers, resins, plastics, cryolite.
2. Food Industry: dextrin, maltose, albumen powder, vitelline powder, compound sugar, granular grease, instant coffee, amylum, flavors, garden stuff. It is applied in drying of some kinds of liquid material, such as solutions, emulsions, suspensions, liquid pastes, etc.
3. Dairy: skim milk powder, whole milk powder, soy milk powder, ice cream powder, milk extract powder, etc.
4. Pharmaceutical industry: Chinese drugs and western medicine powder, antibiotics, biochemical products, vitamins, pesticides, hydrolyzed proteins, enzymes, single cell proteins, etc.
5. Building material industry: ceramic body, frit, superfine powder.
6. Environmental protection: flue gas desulfurization, disposal of black liquor and wastewater of pharmaceutical factories.
7. Others: fishmeal waste, feed, etc.
Milk Powder
Egg Powder
Spirulina Powder
Coffee Powder
Aluminite Powder
Soybean Sauce Powder
A Spray Dryer from Bioland is carefully designed to meet the highest standards for production of food and dairy powders.
Bioland provides a full range of spray drying units and services to companies working with the development of spray dried pharmaceuticals and pharmaceutical grade products.
Bioland's range of pilot & small scale Spray Dryers are designed specifically for R&D, product development and for production in small volumes.
1,Special for lab research, Min 20-30ml liquid to finish one test
2,All borosilicate glass for easy visual monitoring of process status.
3,Spray chamber, cyclone separator, receiving tank are all made of Borosilicate glass which can resist strong acid/alkali, high temperature. It can work in a no-pollution and stable environment.
4,Easy to clean and very simple to assemble and break down.
5,The air compressor is no oil and don't pollute compress air. The sound is low than 50db and following the GMP understands.
6,inlet/outlet temperature is accurate controlled by PID
7,The unit is self contained and supplied complete and ready for immediate operation.
8,Using screen touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker frequency.
9,Product feeding with rotary pump, capacity is adjustable
10,Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.
Reproducible powder production at lab scale
Small sample amount saves valuable material (> 5 g)
High yields (above 95%)
Fast drying process (up to 1 L / h)
Shorter times to optimize formulations
Lowest maintenance costs
Intuitive handling
Scale up to pilot or industrial scale possible
Fast setup and cleaning times
Visible process due to glass assembly
Adjustable particle size (2 - 25 microns)
BIOLAND INSTRUMENT Laboratory spray dryer according to different spray drying nozzle could classify as two-fluid spray dryer and centrifugal spray dryer, if you use it it in laboratory or small scale product, suggest choose two-fluid spray drying machineand its capacity is 1500ml/h to 3000ml/h, if you need 3000ml/h, 5000ml/h, 10000ml/h and larger capacity please choose centrifugal spray drying equipment.
widely used Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others...any interests, please contact us ,thanks!!!
