Medicine treating desktop high recovery rate precio milk powder lab spray dryer with nozzle spray

1.0 Sets
MOQ
Medicine treating desktop high recovery rate precio milk powder lab spray dryer with nozzle spray
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Spray Drying Equipment
Application: Medicine Processing, Chemicals Processing, Food Processing
Condition: New
Voltage: 220V
Power: 1500
Dimension(L*W*H): 800*600*900 Mm
Key Selling Points: Easy To Operate
Warranty: 1 Year
Weight (KG): 95
Applicable Industries: Food & Beverage Factory
Showroom Location: None
Marketing Type: Hot Product 2019
Machinery Test Report: Not Available
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Pump, Motor, PLC
Heating Method: Electric Heating
Material: SUS304, SUS304L, SUS316, SUS316L
Evaporating Capacity: 500ml/h
Min. Outlet Temperature: 50-100℃
Max. Inlet Temperature: 150-200℃
Airflow: 0~330m3/h
Heater Power: 1500W
Temperature Precision: ±1℃
Nozzle Jet: 1.0 Mm Standard(0.5/0.75/1.0/1.5/2.0mm Available)
Nozzle Type: Two Fluid Nozzle
Possible Particle Size Range: 1-25μm
Body Material: SUS304 Stainless Steel
After Warranty Service: Video Technical Support, Online Support
Local Service Location: None
Certification: CE Certificate
Basic Infomation
Certification: CE Certificate
Payment & Shipping Terms
Packaging Details: tri-ply wood with standard spray dryer mini
Supply Ability: 200 Set/Sets per Year spray dryer mini
Product Description
Desktop high recovery rate precio milk powder lab spray dryer with nozzle jet
Product Introduction

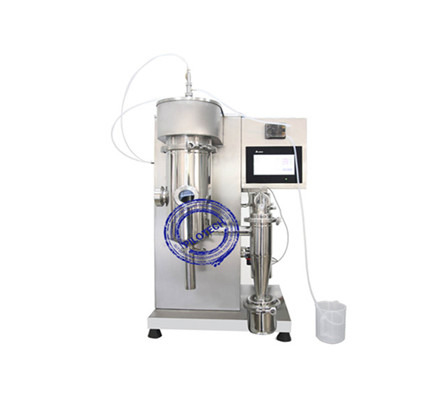

Pilotech YC-500 laboratory spray dryer is small in size and suitable for use on the laboratory table. Its maximum processing capacity is 500ML/H, and a minimum volume of 20ML is enough to perform one experiment. The maximum and minimum inlet air temperature as well as the minimum outlet air temperature for the YC-500 spray dryer are 250 °C, 130 °C and 60 °C respectively.The YC-500 spray dryer can be upgraded to an organic solvent spray dryer with an optional inert loop system, or can be upgraded to a vacuum low temperature spray dryer with an optional vacuum system.
Detailed Images
Name: Cyclone Separator
Material : SUS 316 stainless steel
Characteristic: Its function is to use the material gravity to collect the material.
Name: Spray Head
Material: SUS 316 stainless steel
Characteristic: The spray head is a concentric one. It guarantees no eccentricity during atomization that may lead to spraying to the bottle wall. The spray head can move up and down after installed to facilitate the adjustment of the atomization position to improve the spray drying effect.
Name: Touch Screen
Brand: Delta
Original: Taiwan
Dual control modes of fully automatic control and manual control are available. During the entire experimental process, the color LCD touch screen animation display is available.
Name:Air Compressor
Air Cylinder Material: SUS 304 stainless steel
Characteristic: The air compressor is oil-free. On the whole, the air cylinder of this kind is made of iron completely. As time goes by, it is liable to corrosion because of water steam. To address the problem, we switched to 304-stainless steel. So no problem will be presented in any length of time.
Product Specifications
Body parts
SUS304 stainless steel
Drying Chamber
SUS304 stainless steel
Atomizer
SUS316 stainless steel
Capacity
500-1000 ml/h
Power
1.5 KW
Max Inlet temperature
150-200℃
Min Outlet temperature
50-100 ℃
Drying time
1-1.5 S
nozzle jet
1.0 mm ( 0.5mm, 0.7mm, 0.75mm, 1.0mm，1.5mm, 2.0mm optional)
Air flow
0~330 m³/h
Main Features:

1) Dual control modes of fully automatic control and manual control are available . During the entire experimental process , the color LCD touch screen animation display is available .
2) A built-in oil-free air compressor must be equipped with the stainless steel air tank to prevent corrosion .
3)Shutdown protection function : just press the stop button when shutting down . The machine will stop running immediately except for the blower to ensure that the heating part of the equipment will not break down due to improper operation (shutting down the blower by force).
4) The spray head is a concentric one . It guarantees no eccentricity during atomization that may lead to spraying to the bottle wall . The spray head can move up and down after installed to facilitate the adjustment of the atomization position to improve the spray drying effect . The spray head is made of SUS316L stainless steel .
5) It can be upgraded to an organic solvent model with inert loop system .

Pilotech Spray Dryer Endorsed by Papers in Google Scholar..
* On Google scholar, you can search for many papers on researchers using our lab spray dryer. * Many scientific researchers in different industry, different subjects are also using our spray dryer. * The materials in the papers are of different types, it has also water solution and organic solvent. * Materials in the papers varies from inorganic substance, organic substance, nanomaterial, heat-sensitive materials, and so on. * Papers that contains usage of our spray dryer in different countries, in different languages can also be searched.
Application and outputs
1 ) Beverages • Flavours & Colourings
2 ) Milk & Egg Products • Plant & Vegetable Extracts
3 ) Pharmaceuticals • Heat Sensitive Materials
4 ) Plastics • Polymers and Resins • Perfumes
5 ) Ceramics & Advanced Materials
6) Soaps & Detergents • Blood • Dyestuffs
7 ) Foodstuffs • Adhesives • Oxides •Textiles
8 ) Bones, Teeth & Tooth Amalgam and many others
Package&Delivery
The package is standard export Tri-ply wood. If container is too tigher,we will use pe film for packing or pack it according to customers special request.The tri-plywood packing are very firm, suitable for sea, air and land transport，express.
Support sea, air, DHL, FedEx, etc
Company Information
Our Company
Pilotech started to produce laboratory spray dryer since 2005. We have over 50 patents and over 15 software copyrights. Our company is also the only manufacturer in the world that can produce a wide range of spray dryers, including benchtop spray dryer, vacuum spray dryer, spray-freezing dryer, all-in-one machine for spray drying and fluidized granulator, organic solvent spray dryer and nano spray dryer. Our laboratory spray dryer has many advantages, such as stable performance, easy operation and durable service.
Our Factory
For this reason, the product is very popular among researchers. It has occupied more than 70% of the market in China. It is now used by more than 3,500 users in the world, and exported to more than 60 countries and regions, including USA, UK, Germany, Italy, Russia, South Korea, Singapore, Japan, Malaysia, Canada, Australia, South Africa, Taiwan and Hong Kong.
CERTIFICATE SHOWING
Related Products

YC-015 lab spray dryer

capacity: 1500ml/h~2000ml/h

YC-501 inert loop spray dryer

capacity: 500ml/h~1000ml/h

YC-018 lab spray dryer

capacity: 3500ml/h~4000ml/h
FAQ
1.Q: Which kinds of products do you have?
A: Our main products are: mini spray dryer, mini UHT sterilizer, lab multi-functional extracting
tank, laboratory Inert Loop spray dryer, laboratory low-temperature spray dryer (vacuum spray dryer), laboratory spray freeze dryer, laboratory spray granulator (spray drying & spray granulating all-in-one) as well as small and pilot composite production line for drinks, milk, yogurt and powder, combined with complete laboratory

2,Q: Do all the products have operating interface and operating manual in English?
A: Yes, all our equipment provide operation interface in English, and if necessary, we can also provide the user’s native language, and all products are available in English operating instructions.

3, Q: How is the stability and durability of the company’s products?
A：The company has been established for 10 years, and 90 percent of products have been adopted in Chinese colleges and universities. The first produced products have still used by customers currently, and the products are very durable. In China, before the purchase of equipment, many teachers in the university will carefully listen to the views of colleagues on usage. Pilotech Equipment has good performance and stability and achieved a good reputation, and the purchases of numerous new customers are recommended by old customers.
