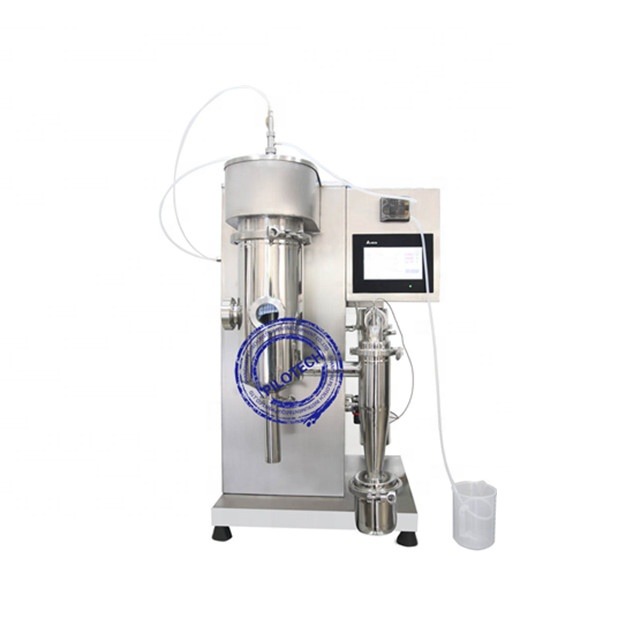

Medicine Processing Food Grade Lab Spray Dryer Machine For R&D Department

1.0 Sets
MOQ
Medicine Processing Food Grade Lab Spray Dryer Machine For R&D Department
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Spray Drying Equipment
Application: Medicine Processing, Chemicals Processing, Food Processing
Condition: New
Voltage: 220V
Power: 1.5KW
Dimension(L*W*H): 800*550*900mm
Key Selling Points: Easy To Operate
Warranty: 1 Year
Weight (KG): 95
Applicable Industries: Dryer Machine
Showroom Location: None
Marketing Type: Ordinary Product
Machinery Test Report: Not Available
Video Outgoing-inspection: Not Available
Warranty Of Core Components: 1 Year
Core Components: Pump, PLC
Evaporation Capacity(kg/h): 0.5
Heating Method: Electric Heating
Material: SUS304, SUS316
Body Material: SUS 304 Stainless Steel
Evaporating Capacity: 500ml/h
Min.Outlet Temperature: 80℃
Maximum Inlet Temperature: 200℃
Airflow: 0~330m3/h
Temperature Precision: ±1℃
Nozzle Jet: 0.7mm Standard(0.5/0.75/1.0/1.5/2.0mm Available)
Nozzle Type: Two Fluid Nozzle
Particle Size: 1~25μm
Atormizer Material: SUS316 Stainless Steel
After-sales Service Provided: Online Support
After Warranty Service: Online Support
Local Service Location: None
Certification: CE
Basic Infomation
Certification: CE
Payment & Shipping Terms
Packaging Details: tri-ply wood with standard
Supply Ability: 200 Set/Sets per Year
Product Description
Application and outputs
1 ) Beverages • Flavours & Colourings
2 ) Milk & Egg Products • Plant & Vegetable Extracts
3 ) Pharmaceuticals • Heat Sensitive Materials
4 ) Plastics • Polymers and Resins • Perfumes
5 ) Ceramics & Advanced Materials
6) Soaps & Detergents • Blood • Dyestuffs
7 ) Foodstuffs • Adhesives • Oxides •Textiles
8 ) Bones, Teeth & Tooth Amalgam and many others
Product Details
Name: cyclone separator
Material : SUS 316 stainless steel
Characteristic: Its function is to use the material gravity to collect the material.
Name: Spray Head
Material:SUS316 stainless steel
Characteristic: The spray head is a concentric one. It guarantees no eccentricity during atomization that may lead to spraying to the bottle wall. The spray head can move up and down after installed to facilitate the adjustment of the atomization position to improve the spray drying effect.
Name: Touch Screen
Brand: Delta
Original: Taiwan
Dual control modes of fully automatic control and manual control are available. During the entire experimental process, the color LCD touch screen animation display is available.
Name:Air compressor
Air Cylinder Material: SUS 304 stainless steel
Characteristic: The air compressor is oil-free. On the whole, the air cylinder of this kind is made of iron completely. As time goes by, it is liable to corrosion because of water steam. To address the problem, we switched to 304-stainless steel. So no problem will be presented in any length of time.
Technical Parameters:
Body parts
SUS304 stainless steel
Drying Chamber
SUS304 stainless steel
Atomizer
SUS316 stainless steel
Capacity
500-1000 ml/h
Power
1.5 KW
Max Inlet temperature
200℃ ( we can custom the temperature for you )
Min Outlet temperature
80 ℃
Drying time
1-1.5 s
nozzle jet
0.5mm ( 0.8mm , 1.0mm , 1.5mm , 2.0mm)
Air flow
0~330 m³/h
Main features :

1) Dual control modes of fully automatic control and manual control are available . During the entire experimental process , the color LCD touch screen animation display is available .
2) A built-in oil-free air compressor must be equipped with the stainless steel air tank to prevent corrosion .
3)Shutdown protection function : just press the stop button when shutting down . The machine will stop running immediately except for the blower to ensure that the heating part of the equipment will not break down due to improper operation (shutting down the blower by force).
4) The spray head is a concentric one . It guarantees no eccentricity during atomization that may lead to spraying to the bottle wall . The spray head can move up and down after installed to facilitate the adjustment of the atomization position to improve the spray drying effect . The spray head is made of SUS316L stainless steel .
5) It can be upgraded to an organic solvent model with inert loop system .

Factory Instruction
Our factory
Pilotech started to produce laboratory spray dryer since 2005. We have over 50 patents and over 15 software copyrights. Our company is also the only manufacturer in the world that can produce a wide range of spray dryers, including benchtop spray dryer, vacuum spray dryer, spray-freezing dryer, all-in-one machine for spray drying and fluidized granulator, organic solvent spray dryer and nano spray dryer. Our laboratory spray dryer has many advantages, such as stable performance, easy operation and durable service.
Our factory
For this reason, the product is very popular among researchers. It has occupied more than 70% of the market in China. It is now used by more than 3,500 users in the world, and exported to more than 60 countries and regions, including USA, UK, Germany, Italy, Russia, South Korea, Singapore, Japan, Malaysia, Canada, Australia, South Africa, Taiwan and Hong Kong.
Certificate showing
Package&Delivery
Relative Products

YC-015 lab spray dryer

capacity: 1500ml/h~2000ml/h

YC-501 inert loop spray dryer

It can work very safely for organic solvent

YC-018 lab spray dryer

capacity: 3500ml/h~4000ml/h
