Home /Products/Lab Spray Dryer/Medicine Processing China Small Milk Powder Lab Spray Dryer Used Machinery

Medicine Processing China Small Milk Powder Lab Spray Dryer Used Machinery

1.0 Sets
MOQ
Medicine Processing China Small Milk Powder Lab Spray Dryer Used Machinery
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Spray Drying Equipment
Application: Medicine Processing, Chemicals Processing, Food Processing
Condition: New
Voltage: 220V
Power: 3500, 3500
Dimension(L*W*H): 650*550*1200mm
Key Selling Points: Easy To Operate
Warranty: 1 Year
Weight (KG): 110
Applicable Industries: Drying Machine
Showroom Location: None
Marketing Type: Hot Product 2019
Machinery Test Report: Not Available
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Pump, Motor, PLC
Heating Method: Electric Heating
Material: SUS304, SUS316
Capacity: 1500-2000ml/h
Equipment Framework: SUS304 Stainless Steel
Atomizer Material: SUS316 Stainless Steel
Drying Chamber Material: High Borosilicate Glass
Inlet Temperature: 30-250℃
Outlet Temperature: 30-140℃
Volts: 220V
Drying Time: 1.0-1.5s
After-sales Service Provided: Online Support, Video Technical Support
After Warranty Service: Video Technical Support, Online Support
Local Service Location: None
Certification: CE Certification
Basic Infomation
Certification: CE certification
Payment & Shipping Terms
Packaging Details: standard export Tri-ply wood
Supply Ability: 200 Set/Sets per Year
Product Description

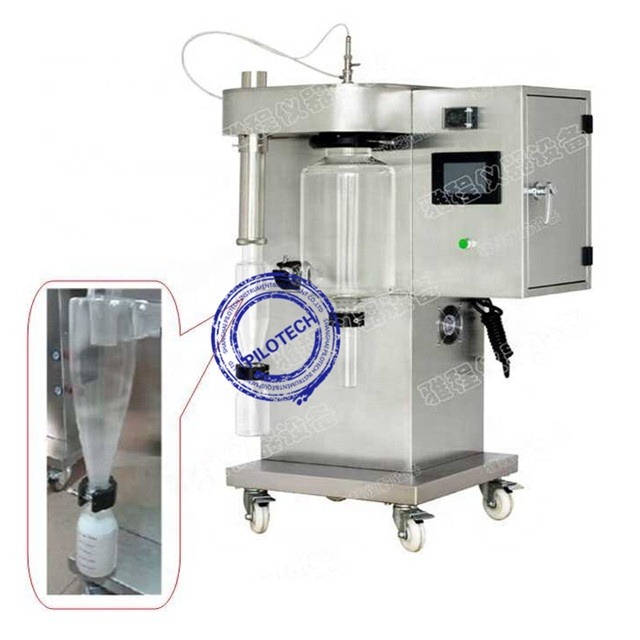

YC-015 lab spray dryer is suitable for laboratory use in fields such as food, biology, metals, materials, ceramics, chemicals,
pharmaceuticals, battery materials, etc.

The built-in air compressor, a unique damping device can ensure low-noise operation of the equipment. The equipment is durable and
many users have been using it for more than 10 years without any problem.

Material
Machine Body
/
SUS304 stainless steel
Atomizer
/
SUS316 stainless steel
Drying Chamber
/
high borosilicate glass

Main performance parameters
Capacity
ml/h
1500
min sample
ml
50
Power
KW
3.5

System
Inlet temperature
℃
30-250
Outlet temperature
℃
30-140
Drying time
s
1-1.5




Machine Parts

Name: Drying Chamber

Material: high borosilicate

Characteristic:high temperature resistance


Machine Parts

Name: Touch Screen
Brand: Delta
Original: Taiwan

Dual control modes of fully automatic control and manual control are available. During the entire experimental process, the color LCD touch screen animation display is available.

Machine Parts

Name:Air compressor
Air Cylinder Material: SUS 304 stainless steel
Characteristic:
The air compressor is oil-free. On the whole, the air cylinder of this kind is made of iron completely. As time goes by, it is liable to corrosion because of water steam. To address the problem, we switched to 304-stainless steel. So no problem will be presented in any length of time.

Machine Parts

Name: Spray Head

Material:SUS316 stainless steel

Characteristic:
The spray head is a concentric one. It guarantees no eccentricity during atomization that may lead to spraying to the bottle wall. The spray head can move up and down after installed to facilitate the adjustment of the atomization position to improve the spray drying effect.

Main Features

1) Dual control modes of fully automatic control and manual control are available. During the entire experimental process, the color LCD touch screen animation display is available.


2) A built-in oil-free air compressor must be equipped with the stainless steel air tank to prevent corrosion.


3)Shutdown protection function: just press the stop button when shutting down. The machine will stop running immediately except for the blower to ensure that the heating part of the equipment will not break down due to improper operation (shutting down the blower by force).


4) The spray head is a concentric one. It guarantees no eccentricity during atomization that may lead to spraying to the bottle wall. The spray head can move up and down after installed to facilitate the adjustment of the atomization position to improve the spray drying effect. The spray head is made of SUS316L stainless steel.


Product Application


YC-015 mini Spray dryer (lab spray dryer) can be used in a wide range of applications where the production of a free-flowing powder sample is required.This technique has successfully processed materials in the following areas:

Oxide • Blood • Polymers and Resins

Beverages • Flavours & Colourings

Milk & Egg Products • Plant & Vegetable Extracts

Pharmaceuticals • Heat Sensitive Materials

Plastics • Perfumes • Dyestuffs

Ceramics & Advanced Materials

Soaps & Detergents •Textiles

Foodstuffs • Adhesives

Bones, Teeth & Tooth Amalgam and many others


Support sea, air, FedEx, DHL, etc.
Packaging
Size
960mm (L) * 750mm (W) * 1490mm (D)
Weight
168KG/SET

Packaging Details
The package is standard export Tri-ply wood(Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
650mm (L) * 410mm (W) * 600mm (D)
Weight
18KG/SET

Packaging Details
The package is standard export Tri-ply wood(Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request.
We have a detailed instruction in English, and there will also be a video for reference. The machine is easy to install and operate. We offer online support and you can contact us at any time.
If there is any problem with the machine, you can describe the problem to us. Our engineers can know which part has the problem through your description.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery.

FIC in 2021
Pilotech has been engaged in spray drying for nearly 20 years. Our products are exported to more than 60 countries. Now we already have over 3,500 users around the world.

Pilotech started to produce laboratory spray dryer since 2005. We have over 50 patents and over 15 software copyrights. Our company is also the only manufacturer in the world that can produce a wide range of spray dryers, including benchtop spray dryer, vacuum spray dryer, spray-freezing dryer, all-in-one machine for spray drying and fluidized granulator, organic solvent spray dryer and nano spray dryer. Our laboratory spray dryer has many advantages, such as stable performance, easy operation and durable service. For this reason, the product is very popular among researchers. It has occupied more than 70% of the market in China. It is now used by more than 3,500 users in the world, and exported to more than 60 countries and regions, including USA, UK, Germany, Italy, Russia, South Korea, Singapore, Japan, Malaysia, Canada, Australia, South Africa, Taiwan and Hong Kong.
Pilotech Spray Dryer Endorsed by Papers in Google Scholar
* On Google scholar, you can search for many papers on researchers using our lab spray dryer.
* Many scientific researchers in different industry, different subjects are also using our spray dryer.
* The materials in the papers are of different types, it has also water solution and organic solvent.
* Materials in the papers varies from inorganic substance, organic substance, nanomaterial, heat-sensitive materials, and so on.
* Papers that contains usage of our spray dryer in different countries, in different languages can also be searched.
