Home /Products/Closed Loop Spray Dryer/Medicine Curing Small Type Mini Model Egg Powder Spray Dryers Lab Test Spray Drying Machine

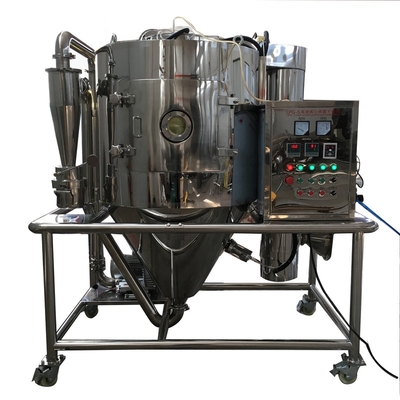

Medicine Curing Small Type Mini Model Egg Powder Spray Dryers Lab Test Spray Drying Machine

1 Piece
MOQ
$9,000.00(>=1 Pieces)
Price
Medicine Curing Small Type Mini Model Egg Powder Spray Dryers Lab Test Spray Drying Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Spray Drying Equipment
Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Condition: New
Voltage: 380V/460V/Customizable, Client Local Standard
Power: See Technical Parameter List
Dimension(L*W*H): See Technical Parameter List
Key Selling Points: Multifunctional
Warranty: 1 Year
Weight (KG): 1000
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Pump, Gear, Motor, Gearbox, Engine, Pressure Vessel
Evaporation Capacity(kg/h): See Technical Parameter List
Heating Method: Electric Gas Oil Heating
Material: SUS304, SUS316
Product Name: Centrifugal Spray Dryer Equipment
Application Field: Chemicals Foodstuff Medical Pharmaceutical Industrial Processing
Application Material: Liquid
Equipment Material: Stainless Steel304/316/Carbon Steel
Heating Source: Electricity Steam Oil Gas
Keywords: Centrifugal Atomizer Spray Dryer
Advantage: Easy Operation High Efficiency
MOQ: 1set
After-sales Service Provided: Service Machinery Overseas
Basic Infomation
Payment & Shipping Terms
Packaging Details: Standard Wooden Case Packing for Centrifugal Spray Dryer Equipment
Supply Ability: 50 Set/Sets per Month Centrifugal Spray Dryer Equipment
Product Description
Food Industry Automatic High Speed Centrifugal Spray Dryer Equipment
Product Overview

Brief Introduction:
Spray dryer is a kind of continuous atmospheric desiccator. Spray liquid material into mist with special equipment to make it dry in contact with hot air. It is used for drying some heat sensitive liquids, suspensions and viscous liquids, such as milk, eggs, tannins and drugs. It is also used for drying fuels, intermediates, soap powder and inorganic salts.
Features And Advantages:
The drying speed is fast, the surface area of the material liquid is greatly increased after atomization, and 95% - 98% water can be evaporated instantly in the hot air flow. The drying time is only a few seconds, which is especially suitable for the drying of heat sensitive materials. The product has good uniformity, fluidity and solubility, high purity and good quality. The production process is simplified and the operation control is convenient. For the liquid with moisture content of 40-60% (special materials up to 90%), it can be dried into powder products at one time. After drying, there is no need to crush and screen, so as to reduce the production process and improve the purity of products. The particle size, bulk density and moisture of the product can be adjusted by changing the operating conditions within a certain range, which is very convenient for control and management.
Application Field:
Food and plants: Oats, chicken juice, coffee, instant tea, seasoning spices meat, protein, soybeans, peanut protein, hydrolysates and so on.
Carbohydrates: Corn steep liquor, corn starch, glucose, pectin, maltose, potassium sorbate and the like.
Chemical Industry: Battery raw materials, basic dye pigments, dye intermediates, fertilizer, formaldehyde silicic acid, catalysts, agents, amino acids, silica and so on.
Ceramics: Alumina, ceramic tile materials, magnesium oxide, talcum powder and so on.
Product More Pictures
Smaller Model:
Larger Model:
Our Equipments on Customers' Site:
Working Principle
After being filtered and heated, the air enters the air distributor at the top of the dryer, and the hot air enters the drying chamber evenly in a spiral shape. The high speed centrifugal atomizer at the top of the tower (swivel) is atomized into tiny droplets of mist, contacting with the hot air and flowing into the finished product in a very short time. The finished product is continuously output from the bottom of the drying tower and the cyclone separator, and the waste gas is discharged by the induced draft fan.
Product Parameters
Our Spray Dryer can be customized. If you need a customized or larger model, please feel free to contact us.
Model
WTPG05
WTPG25
WTPG50
WTPG100
WTPG150
Inlet temperature (℃)
140~350 automatically control
Outlet temperature (℃)
80~90
Max. water evaporation capacity (kg/h)
5
25
50
100
150
Centrifugal spray nozzle rotation mode
Compressed air transmission

Mechanical transmission
Rotation speed (r.p.m)
35000
20500
17600
17600
15500
Spray disc diameter mm
50
108
120
130
150
Heating source
Electric
Electric+ steam
Electric+steam, fuel oil and gas
Max power of electric heating (Kw)
9
36
63
81
99
Dried powder collection rate
≥95
≥95
≥95
≥95
≥95
Dimension (m)
1.8*0.93*2.2
3*2.7*4.26
3.7*3.2*5.1
4.6*4.2*6
5.5*4.5*7
Product Packaging
Company Profile
Why Choose Us:
We sincerely invite you to be our long term relationship friend , and we always prepared to provide our best services for you and would like you to know below we want to present:
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the commissioning.
4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired, lifetime maintenance service is provided and at buyer’s cost.
Our Achievements And Honors:
Our company has professional engineers with strong new product development ability, and can develop equipment products according to the actual needs of customers. Our company has ISO 9001 certification, CE certification and other relevant authoritative parts of professional identification and recognition.
Our Pursuit:
Facing the fierce market competition, our company is relying on its own advantages, integrating external resources, optimizing internal management, constantly exploring and innovating, and striding forward in the direction of business specialization and diversification. Our company adheres to the business philosophy of quality and service, and wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the maximum extent. Serve customers, achieve customers, sincerely look forward to cooperating with new and old customers to create a better future. Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process. Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of
experienced and qualified professionals, who have sound knowledge about the quality of our medical machinery.
Our Factory:
LIAOYANG WINTECH INDUSTRIAL CO., LTD, takes Drying Equipment and Centrifugal Filter Equipment processing and manufacturing as the main industry, main products are Spray Dryer, Vacuum Rake Dryer, Drying Oven, Fluid Bed Dryer, Drum Dryer, Horizontal Decanter Centrifuge, Disc Centrifuge, Tubular Centrifuge, Flat Series Centrifuge, CO2 Supercritical Extraction Equipment, and corresponding supporting equipment, eg. food line, pharmaceutical line, chemical line. At the same time, to undertake standards and non-standard products. Our equipment is exported to Europe, America, Southeast Asia, Africa and other countries, and has been praised by foreign customers.
FAQ
1. What data is required to confirm the model?
(1) Materials to be dried (2) Treatment capacity per hour (3) Moisture requirements before and after drying

2. What certificates do you have?
We can provide CE, ISO 9001, etc.

3. What is the warranty period of the equipment?
Normally 1 year warranty.

4. Can we visit your factory?
Of course, we sincerely invite you to visit, if it's not convenient for you, you can visit our factory and solve problems through video conference.

5. Can we bring our own materials to your factory for experiments?
Of course, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site.

6. Can it be customized?
Of course, our equipment can be customized according to the actual requirements of customers.

7. How long is the construction period?
It's about 30 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.

8. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site.
