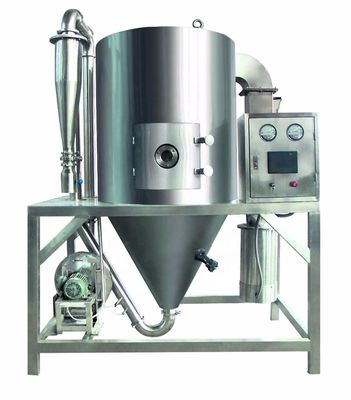

Customizable drying equipment chicken juice powder dryer high speed centrifugal spray drying machine
Working Principle:
The air is filtered and heated into the top of the dryer air distributor, hot air into the spiral evenly into the drying chamber. The material liquid is sprayed into a fine atomized liquid droplet through the high-speed centrifugal nebulizer at the top of the tower body, and can be contacted with the hot air in a very short time and can be dried into finished products. The finished product is continuously discharged from the bottom of the drying tower and the cyclone, and the exhaust gas is drained by the draft fan.
| Model | WKS-SD-5 | WKS-SD-25 | WKS-SD-50 | WKS-SD-150 | WKS-SD-200~2000 |
| Item / Parameters | |||||
| Inlet temperature | 100-350 | 100-350 | 100-350 | 100-350 | 100-350 |
| Outlet temperature | 50-90 | 50-90 | 50-90 | 50-90 | 50-90 |
| Maximum evaporation of water (kg / h) | 5 | 25 | 50 | 150 | 200~2000 |
| Maximum speed (r.p.m) | 25000 | 18000 | 18000 | 15000 | 8000~15000 |
| Spray disc diameter (mm) | 50 | 120 | 120 | 150 | 180~240 |
| Heat source | electricity, steam, gas, etc. (as per customers' requirements) | ||||
| Electric heating maximum power (kw) | 9 | 36 | 72 | 99 | 150 |
| Dimensions (L × W × H) (m) | 1.8×0.93×2.2 | 3×2.7×4.26 | 3.5×3.5×4.8 | 5.5×4×7 | based on actual conditions |
| Dry powder recovery (%) | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 |
Product Features
High speed drying:the surface area of liquid material is greatly increased after atomization, achieving instantaneous evaporation of 95% -98% water in the hot air flow, drying time only takes a few seconds, especially for heat-sensitive materials
Products achieve good uniformity, mobility and solubility, and also achieve purity, good quality. The production process is simplified and the operation control is convenient. For liquid materials with the moisture content of 40-60% (special materials up to 90%) can be dried into powder products just with one time, do not need grinding and screening after drying, reduce production processes and improve product purity. The product size, bulk density, moisture, in a certain range can be adjusted by changing operating conditions, control and management are very convenient.
The air is filtered and heated into the top air distributor of the dryer, and the hot air enters the drying chamber evenly in a spiral fashion. The material liquid is sprayed into a fine atomized liquid droplet through the high-speed centrifugal nebulizer at the top of the tower body, and can be contacted with the hot air in a very short time and can be dried into finished products. The finished product is continuously discharged from the bottom of the drying tower and the cyclone, and the exhaust gas is drained by the draft fan.
Application
Food and plants: oats, chicken juice, coffee, instant tea, seasoning spices meat, protein, soybeans, peanut protein, hydrolysates and so on.
Carbohydrates: corn steep liquor, corn starch, glucose, pectin, maltose, potassium sorbate and the like. Chemical industry: battery raw materials, basic dye pigments, dye intermediates, fertilizer, formaldehyde silicic acid, catalysts, agents, amino acids, silica and so on.
Ceramics: alumina, ceramic tile materials, magnesium oxide, talcum powder and so on
Packaging: wooden case (fumigation free) or as per customers' requirements
Shipping: within 5 to 7 working days after receiving the balance payment
