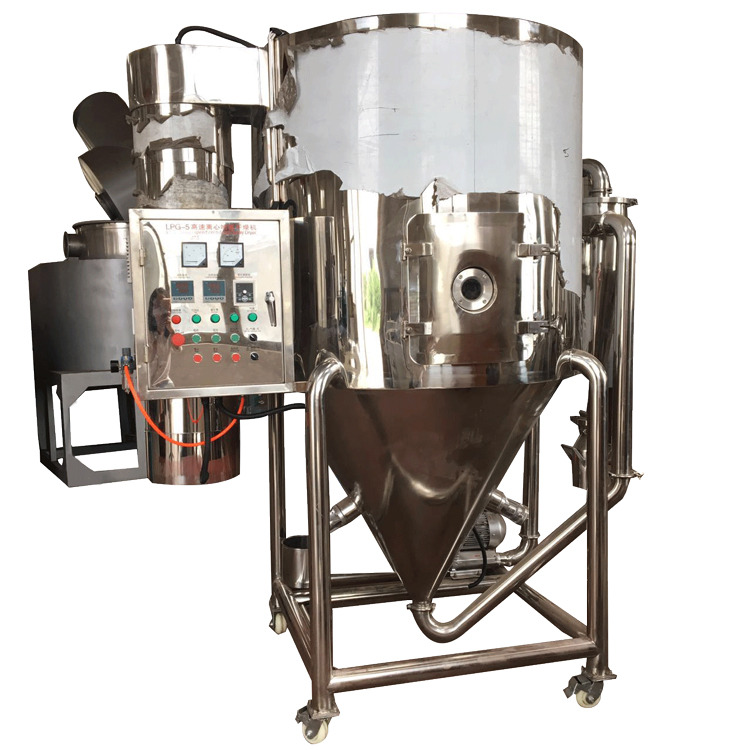

Medicine Curing Spray Dryer Chlorella And Spirulina Powder Centrifugal Spray Drying Machine

1 Piece
MOQ
Medicine Curing Spray Dryer Chlorella And Spirulina Powder Centrifugal Spray Drying Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Spray Drying Equipment
Application: Medicine Processing, Chemicals Processing, Food Processing
Condition: New
Dimension(L*W*H): 1.8*0.93*2.2m
Key Selling Points: Competitive Price
Warranty: 1 Year
Weight (KG): 1000
Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Food & Beverage Shops
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Gear, Motor, Engine
Evaporation Capacity(kg/h): 5
Heating Method: Electric Heating
Material: SUS304, SUS304
Function: Powder Spray Dryer
Basic Infomation
Payment & Shipping Terms
Packaging Details: Wooden cases
Supply Ability: 100 Piece/Pieces per Month
Product Description

Industrial centrifugal spray dryer

The spray dryer is one of the continuous atmospheric dryers. The liquid material is sprayed with a special device to form a mist and is dried in contact with hot air. For the drying of some heat-sensitive liquids, suspensions, and viscous liquids, such as milk, eggs, tannins, and drugs. Also used for drying fuels, intermediates, soap powder, and inorganic salts.




High-speed drying: the surface area of liquid material is greatly increased after atomization, achieving instantaneous evaporation of 95% -98% water in the hot air flow, drying time only takes a few seconds, especially for heat-sensitive materials.


Products achieve good uniformity, mobility, and solubility, and also achieve purity, good quality. The production process is simplified and the operation control is convenient. For liquid materials with the moisture content of 40-60% (special materials up to 90%) can be dried into powder products just with one time, do not need grinding and screening after drying, reduce production processes and improve product purity. The product size, bulk density, moisture, in a certain range can be adjusted by changing operating conditions, control and management are very convenient.
Atomizer
Observation window
Control box

PLC touch screen control panel

Push button control panel


Working Principle
The air is filtered and heated into the top of the dryer air distributor, hot air into the spiral evenly into the drying chamber.
The material liquid is sprayed into a finely atomized liquid droplet through the high-speed centrifugal nebulizer at the top of
the tower body, and can be contacted with the hot air in a very short time and can be dried into finished products. The finished product is continuously discharged from the bottom of the drying tower and the cyclone, and the exhaust gas is drained by the draft fan.
Technical parameters
Item丨Model
LPG-5
LPG-25
LPG-50
LPG-150
LPG-200~2000
Inlet temp. ℃
140~350
140~350
140~350
140~350
140~350
Outlet temp. ℃
80~90
80~90
80~90
80~90
80~90
Max. water evaporation kg/h
5
25
50
150
200~2000
Transmission form of
centrifugal atomizer
Compressed air transmission
Mechanical transmission
Mechanical transmission
Mechanical transmission
Mechanical transmission
Maximum speed (r.p.m)
25000
18000
18000
15000
8000-15000
Diameter of atomizer (mm)
50
120
120
150
180-240
Heat source
Electricity
Electricity, steam, natural gas, LPG
Max. power of electric heater (kw)
9
36
72
99

Overall dimensions (LWH) (m)
1.8*0.93*2.2
3*2.7*4.26
3.5*3.5*4.8
5.5*4*7

Dry powder recovery rate (%)
≥95%
Note: The amount of water evaporation is related to the characteristics of the material and the temperature of the hot inlet and outlet.

Information provided by the user

◎Name of material and liquid, physical properties: solid content (or water content), viscosity, surface tension, PH value. ◎After drying, powder capacity, allowable residual water content, particle size and allowable maximum temperature. ◎Production, daily working hours. ◎Available energy: steam pressure available, electric capacity, available for coal, oil and gas. ◎Control requirements: Whether the inlet and outlet temperatures need to be controlled automatically. ◎Powder collection requirements: whether to install bag traps, and environmental requirements for exhaust emissions. ◎Other special requirements.
Lab scale model
