Features

Specifications

Type: Drying Oven

Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing

Condition: New

Voltage: 380V

Power: 18-50kw

Dimension(L*W*H): 1.8*0.9*2.2mm-5.5*4.5*7mm

Key Selling Points: High Safety Level

Warranty: 1 Year

Weight (KG): 1500

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction WorksÂ , Energy & Mining, Food & Bevera

Showroom Location: None

Marketing Type: Hot Product 2019

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Warranty Of Core Components: 1 Year

Core Components: PLC

Evaporation Capacity(kg/h): 100

Heating Method: Electric Heating

Material: SUS304

Basic Infomation

Payment & Shipping Terms

Packaging Details: wooden case

Supply Ability: 200 Unit/Units per Month

Product Description

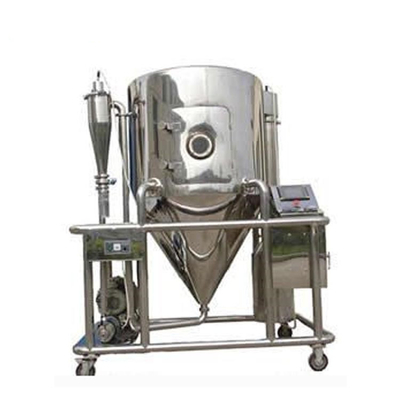

LPG Series High Speed Centrifugal Spray Dryer is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing solid powder or particle products from liquid materials, such as solution , emulsion, suspension and pumpable paste states, For this reason, when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.

Working Process soymilk dryer.

After been filtered and heated the Air enters into the air distributor on the top of the dryer .The Hot Air enters into the drying room in the spiral form and uniformly. Passing through the high-speed centrifugal Sprayer/Atomizer on the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads .Through the very short time of contacting the heat air, the materials can be dried into the Final products .The final products will be Discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower..

Specification

Technical parameters
Model	5	25	50	100	150	200	500	1000	2000-6000
Inlet temperature(℃)	Technical parameters
Outlet temperature( ℃)	80-90
Spraying method	High-speed centrifugal atomizer (Mechanical transmission or stepless variable frequency speed regulating)
Moisture evaporating ability(kg/h)	5	25	50	100	150	200	500	1000	2000-6000
Rotary speed(rpm)	25000	22000	21500	18000			16000			12000-13000	It is decided by the process, the site condition and the user's requirement.
Body diameter(m)	1.2	1.9	2.2	2.56	2.96	3.36	5.2	7.6
Diameter of atomizing disc	60			120			150					180-210
Transmission power(kw)	4.2	14	18	28	37	43	76	109
Heating power(kw)	9	36	48	72	84	96	144
Recovered dry power(%)	>95
Nozzle's lifting height(m)	--	2.5			3.2								It is decided by the process.
