Home /Products/Benchtop Spray Dryer/Medicine Treating Pilotech YC-1800 Lab Spray Dryer With Low Temperature

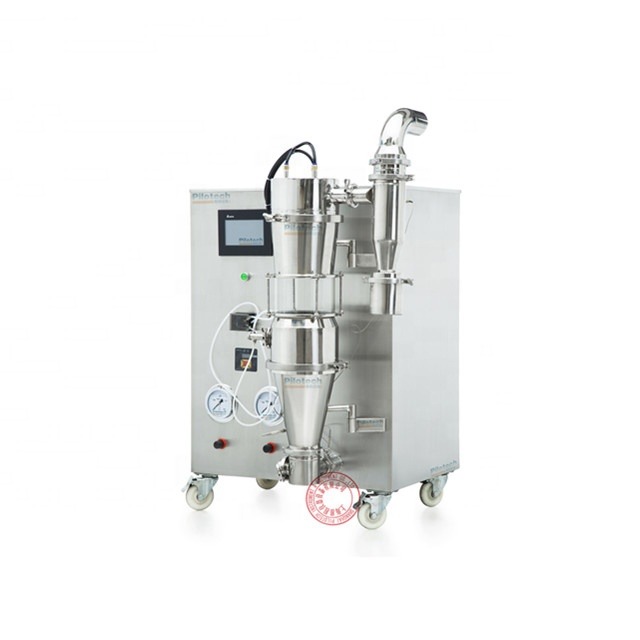

Medicine Treating Pilotech YC-1800 Lab Spray Dryer With Low Temperature

1.0 Sets
MOQ
Medicine Treating Pilotech YC-1800 Lab Spray Dryer With Low Temperature
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Spray Drying Equipment
Application: Medicine Processing, Chemicals Processing, Food Processing
Condition: New
Voltage: 220V
Power: 4KW
Dimension(L*W*H): 950*800*1350mm
Key Selling Points: Easy To Operate
Warranty: 1 Year
Weight (KG): 125
Applicable Industries: Drying Equipment
Showroom Location: None
Marketing Type: Ordinary Product
Machinery Test Report: Not Available
Video Outgoing-inspection: Not Available
Warranty Of Core Components: 1 Year
Core Components: Pump, PLC
Evaporation Capacity(kg/h): 1.5
Heating Method: Electric Heating
Material: SUS304, SUS316
Body Material: SUS 304 Stainless Steel
Capacity: 1500~1800ml/h
Min. Sample: 30~50
Air Inlet Temperature: 105°C-200°C
Mini.sample: 30ml
Temp. Precision: ±1℃
Drying Time: 1.0~1.5s
Seal Ring Material: Silicone
Jet Size: 0.5mm/0.7mm/1.0mm/1.5mm/2.0mm
Atomizer Material: SUS 316 Stainless Steel
After-sales Service Provided: Online Support
After Warranty Service: Online Support
Local Service Location: None
Certification: CE
Basic Infomation
Certification: CE
Payment & Shipping Terms
Packaging Details: tri-ply wood with export standard
Supply Ability: 200 Set/Sets per Year
Product Description
Product Description
YC-1800 laboratory Spray dryercan be used in a wide range of applications where the production of a free-flowing or solid powder
sample is required.This technique has successfully processed materials in the following areas:
> Oxide • Blood • Polymers and Resins
> Beverages • Flavours & Colourings
> Milk & Egg Products • Plant & Vegetable Extracts
> Pharmaceuticals • Heat Sensitive Materials
> Plastics • Perfumes • Dyestuffs
> Ceramics & Advanced Materials
> Soaps & Detergents •Textiles
> Foodstuffs • Adhesives
> Bones, Teeth & Tooth Amalgam and many others
Parameters and features
PARAMETERS OF YC-1800 lab low temperature spray dryer

Material
Machine body
/
SUS 304 stainless steel
Atomizer
/
SUS 306 stainless steel
Drying chamber
/
SUS 304 stainless steel

Main performance parameters
Capacity
ML/H
1500~1800
Min.sample
ML
30
Power
kw
3.5

System
Inlert temperature
°C
105~200
Drying time
S
1~1.5
Noise
DB
<65

Main Features

1) Dual control modes of fully automatic control and manual control are available. During the entire experimental process, the color LCD touch screen animation display is available.

2) A built-in oil-free air compressor must be equipped with the stainless steel air tank to prevent corrosion.

3)Shutdown protection function: just press the stop button when shutting down. The machine will stop running immediately except for the blower to ensure that the heating part of the equipment will not break down due to improper
operation (shutting down the blower by force).

4) The spray head is a concentric one. It guarantees no eccentricity during atomization that may lead to spraying to the bottle wall. The spray head can move up and down after installed to facilitate the adjustment of the atomization position to improve the spray drying effect. The spray head is made of SUS316L stainless steel.


5)Spray dry at low temperature (105°C)using for thermo-sensitive material.


6)Fluid-bed drying is provided as a optional fuanction.Besides liquids,many labs need drying lots of powders.

Certifications
Detailed Images

Name: drying chamber

Material:SUS304 stainless steel , high borosilicate glass

The orgnization of thsese materials is helpful for oper-ators to observe the drying dynamics . The stainless steel is unbreakable and heat-resisting.

Name: air compressor
Air cyclinder meterial:SUS304 stainless steel
The air compressor is oil-free. On the whole, the air cylinder of this kind is made of iron completely. As time goes by, it is liable to corrosion because of water steam. To address the problem, we switched to 304-stainless steel. So no problem will be presented in any length of time.



Brand: Delta
Original: Taiwan
Dual control modes of fully automatic control and manual control are available. During the entire experimental process, the color LCD touch screen animation display is available.

Name: cyclone separator
Material:SUS304 stainless steel
The function of this part is to separate the outputs qqickly,which seems like a centrifugal machine ,at last get our needs.

Factory Instruction
Pilotech started to produce laboratory spray dryer since 2005 . We have over 50 patents and over 15 software copyrights . Our company is also the only manufacturer in the world that can produce a wide range of spray dryers ,

including benchtop spray dryer , vacuum spray dryer , spray-freezing dryer , all-in-one machine for spray drying and fluidized granulator , organic solvent spray dryer . Our laboratory spray dryer has many advantages , such as stable performance , easy operation and durable service . For this reason , the product is very popular among researchers .

It has occupied more than 70% of the market in China . It is now used by more than 3,500 users in the world , and exported to more than 60 countries and regions , including USA , UK , Germany , Italy , Russia , South Korea , Singapore , Japan , Malaysia , Canada , Australia , South Africa , Taiwan and Hong Kong , etc .
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

Packing & Delivery
Packaging
Size
1150(L)*1050(W)*1380(D)MM
Weight
194KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request.
