Home /Products/Benchtop Spray Dryer/Medicine Treating Pilotech YC-018 Lab Pilot Mini Ceramic Powder Spray Dryer With Water Solution

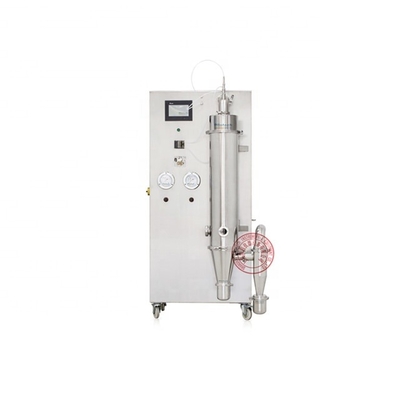

Medicine Treating Pilotech YC-018 Lab Pilot Mini Ceramic Powder Spray Dryer With Water Solution

1 Set
MOQ
Medicine Treating Pilotech YC-018 Lab Pilot Mini Ceramic Powder Spray Dryer With Water Solution
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Spray Drying Equipment
Application: Medicine Processing, Chemicals Processing, Food Processing
Condition: New
Voltage: 220V
Power: 5.5kw, 5.5KW/220V
Dimension(L*W*H): 1050*900*1660mm
Key Selling Points: Easy To Operate
Warranty: 1 Year
Weight (KG): 120
Applicable Industries: Laboratory, University
Showroom Location: Russia
Marketing Type: Hot Product 2019
Machinery Test Report: Not Available
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Pump, Motor, PLC
Evaporation Capacity(kg/h): Other
Heating Method: Electric Heating
Material: SUS304
Air Inlet Temperature: 110℃-350℃
Frequency: 50/60 Hz
Body Material: SUS-304
Max. Capacity: 3500ml/h For Water
Min. Sample Feed: 100ml
Dimensions: 1050*900*1660mm
Nozzle Type: Two Fluid Nozzle
Atomizer Material: SUS-316L
After-sales Service Provided: Video Technical And Video Support
Basic Infomation
Payment & Shipping Terms
Packaging Details: tri-ply wood with standard spray dryer machine
Supply Ability: 200 Set/Sets per Year spray dryer machine
Product Description
Product Introduction
Pilotech YC-018 lab spray dryer is capable of processing 3500 ML per hour, and it only needs a minimum amount of 100 ML materials to perform one experiment. Is suitable both for laboratory use and the pilot plant use. The inlet air temperature for the YC-018 laboratory spray dryer ranges from 110 to 300 °C. As the range is relatively wide, it is suitable for drying the spray of most materials. After the drying process, the particle size ranges from 1 to 100 microns, so it is suitable for the spray drying of ceramics and catalysts.
The minimum and maximum capacities of YC-018 lab spray dryer are respectively 50 ML and 4 L/H. Being capable of continuous production, it is a perfect combination of minor, small and pilot scale.
With maximum inlet air temperature reaching 350°C, it can meet ultra-high temperature drying requirements of ceramics and other materials; with minimum inlet air temperature being 105°C, it is especially suitable for spray drying of traditional Chinese medicine, extracts of natural substances and other materials with sugar content. No material will adhere to the wall during drying and materials are featured with excellent fluidity after drying.
PRODUCT SPECIFICATIONS
No
Parameter
Data
1
Power
5.5KW
2
Voltage
220V
3
Frequency
50/60 Hz
4
Air Inlet temperature
110 ℃ -350 ℃
5
Air Outlet temperature
65 ℃ -200 ℃
6
Heating control
±1 ℃
7
Max. Sample feed
3500ml/h
8
Body material
SUS-304 Stainless steel
FEATURES AT A GLANCE

Flexible switch between small and high processing capacities


The minimum and maximum capacities of YC-018 mini spray dryer are respectively 50ML and 4L/H. Being capable of continuous production, it is a perfect combination of minor, small and pilot scale.

Easy to use


Color Touch Screen,Fast setup and cleaning times.
Scale up to pilot or industrial scale possible.
Visible process due to glass assembly.
Adjustable particle size (1–100 microns)

Functionality


• Inlet Temperature
• Airflow Volume
• Air compressor flow
• Pump Speed
• De-blocker Frequency

Two Fluid Nozzle with SUS316L stainless steel


The spray assembly incorporates an automatic de-blocking device that prevents the jet nozzle from becoming blocked, the de-blocking needle is activated by an integral compressor. De-blocker is sometimes necessary with materials which may solidify or when large particles in suspension cause blockages in the jet.

Preparation convenience


The minimum of materiel only needs 50ml, which is convenient for dealing with small amount of sample, and it's maximum capacity can up to 4000ml/H as well as the dealing with vast material is also very rapidly.

High recovery rate


With only one cyclone separator, recovery rate is always a problem with lab spray dryers and it is difficult to improve recovery even with two cyclones. With the structured redesigned, YC-018 can reach a maximum recovery rate of 92%, excellently solving the problem of low recovery.
Certificate Showing
Exhibition
WHY CHOOSE US
* A simple and effective lab spray dryer for product research and development.

* With over 20 years of continual development, Pilotech lab spray dryer is world renowned for our quality and reliability.

* From bench spray dryer to pilot scale spray dryer, from aqueous solutions to organic solvents, complete specifications.

* You can discover our lab spray dryer outstanding efficiency and flexibility.
Pilotech started to produce laboratory spray dryer since 2005. We have over 50 patents and over 15 software copyrights. Our company is also the only manufacturer in the world that can produce a wide range of spray dryers, including benchtop spray dryer, vacuum spray dryer, spray-freezing dryer, all-in-one machine for spray drying and fluidized granulator, organic solvent spray dryer and nano spray dryer. Our laboratory spray dryer has many advantages, such as stable performance, easy operation and durable service. For this reason, the product is very popular among researchers. It has occupied more than 70% of the market in China.
Packing & Delivery
We support sea, air, express and so on.
FAQ
Q1:Do all products have English operating interfaces and operating manuals?
A1:Yes, all our equipment has English operation interfaces, and if necessary, we are also able to provide the edition in the user's native language, and all products are available in English operating instructions; if necessary, we can also provide the user's desired language version. In addition, there are are operating videos for our products for the convenience of customers to use.

Q2:How is the after-sales service of your company?
A2:We offer one-year quality guarantee for all the products, and for products within the warranty period, we provide free services for all damages not resulting from human beings. After the warranty expires, we will charge cost price only .

Q3:How is the stability and durability of your products?
A3:The company has been established for over 10 years, and our products have been adopted by 90 percent of colleges and universities in China. The earliest products are still used by customers at present; they are really durable. In China, before purchasing our equipment, many teachers in university will listen to the views of colleagues carefully. Pilotech's equipment is reputed for its good performance and stability, and numerous new customers are recommended by old customers.
