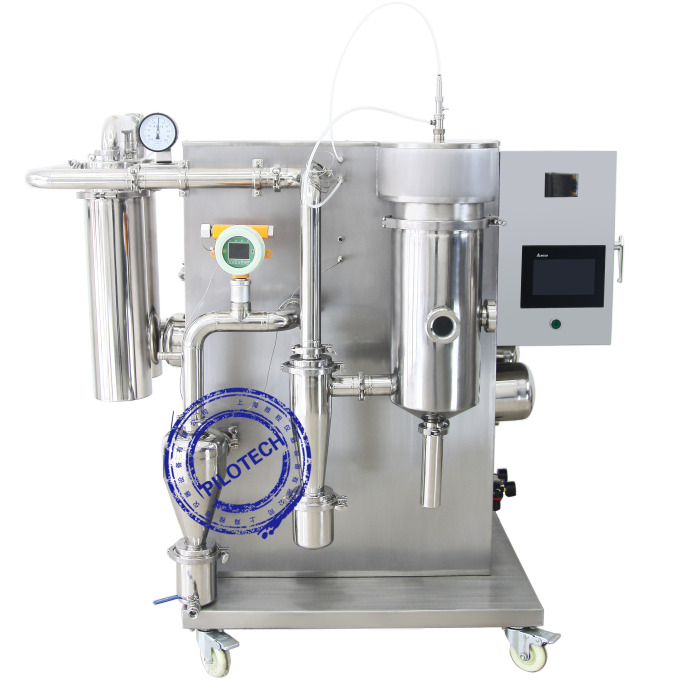

Medicine Curing Pilotech YC-015A Lab Spray Dryer For Organic Solvent

1.0 Sets
MOQ
Medicine Curing Pilotech YC-015A Lab Spray Dryer For Organic Solvent
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Spray Drying Equipment
Application: Medicine Processing, Chemicals Processing, Food Processing
Condition: New
Voltage: 220V
Power: 5KW
Dimension(L*W*H): 1150mm*800mm*1450mm
Key Selling Points: Easy To Operate
Warranty: 1 Year
Weight (KG): 228
Applicable Industries: Drying Machine
Showroom Location: None
Marketing Type: Ordinary Product
Machinery Test Report: Not Available
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Pump, PLC
Evaporation Capacity(kg/h): 1.5
Heating Method: Electric Heating
Material: SUS304, SUS316
Name: Lab Inert Loop Spray Dryer
Model: YC-015A
Capacity: 1500ml/h
Body Material: Sus 304 Stainless Steel
Nozzle Materil: SUS 316 Stainless Steel
Feed Rate Range: 1000ml/h~1500ml/h
Inlet Temperature: 60℃~200℃
Jet Size: 0.7mm As Standard
Precision Of Temperature: ± 1°c
Nozzle Type: Two Fluid Nozzle
After-sales Service Provided: Online Support, Video Technical Support
After Warranty Service: Online Support
Local Service Location: None
Certification: CE Certificate
Basic Infomation
Certification: CE Certificate
Model Number: YC-015A
Payment & Shipping Terms
Packaging Details: tri-ply wood with standard lab spray dryer
Supply Ability: 200 Set/Sets per Year lab spray dryer
Product Description
Product Description
Specification
PARAMETERS OF YC-015A LAB INERT LOOP SPRAY DRYER
Power
5KW
Voltage.
220V,50-60Hz.
Evaporating Capacity.
1500ml/h
Airflow
0-330 m3/h.
Max. Inlet temperature.
200°c
Temperature precision.
±1°C
Nozzle jet.
0. 7mm standard/(0.5/0. 75/1.0/1.5/2.0mm available).
Nozzle type
Two fluid nozzle.
Possible particle size range.
1~25um
Mean Residence time
1.0-1.5 sec.
Operation mode.
Automatic/ManuaL
Packing & Delivery
The materials we export are fumigation-free tri- plywood . Every piece of goods is packaged under strict standards . In the past 16 years , we have exported to more than 60 countries , such as the United States , Canada , Russia , Australia , South Korea , Brazil , France , Pakistan , etc .
Company Profile
Pilotech started to produce laboratory spray dryer since 2005 . We have over 50 patents and over 15 software copyrights . Our company is also the only manufacturer in the world that can produce a wide range of spray dryers , including benchtop spray dryer , vacuum spray dryer, spray-freezing dryer , all-in-one machine for spray drying and fluidized granulator , organic solvent spray dryer and nano spray dryer . Our laboratory spray dryer has many advantages , such as stable performance , easy operation and durable service . For this reason , the product is very popular among researchers . It has occupied more than 70% of the market in China . Around the world , there are more than 3500 scientific institutions and companies that are using our equipment and complete services .
Certificate Showing
WHY CHOOSE US
1. Our machines are of good quality and durable . A customer bought our machine in 2005 and it is still in use today .
2. Our machines can bring customers a good use experience. After years of development, we are guided by customer needs and can skillfully help customers solve problems .
3. We have more than 15 years of export experience. After customers buy the machine, they don't have to worry about packaging and transportation issues .

You can find us by searching ' Shanghai Pilotech ' in Google Scholar . There are many articles about our machine .
