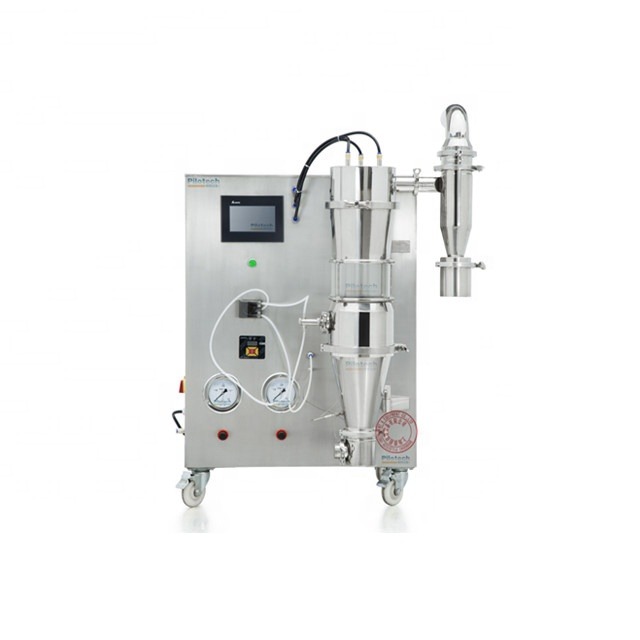

Medicine Curing Pilotech YC-1800 Lab Spray Dryer For Herb Medicine

1.0 Sets
MOQ
Medicine Curing Pilotech YC-1800 Lab Spray Dryer For Herb Medicine
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Spray Drying Equipment
Application: Medicine Processing, Chemicals Processing, Food Processing
Condition: New
Voltage: 220V
Power: 4000
Dimension(L*W*H): 950*800*1350mm
Key Selling Points: Easy To Operate
Warranty: 1 Year
Weight (KG): 125
Applicable Industries: Drying Equipment
Showroom Location: None
Marketing Type: Ordinary Product
Machinery Test Report: Not Available
Video Outgoing-inspection: Not Available
Warranty Of Core Components: 1 Year
Core Components: Pump, PLC
Evaporation Capacity(kg/h): 1.5
Heating Method: Electric Heating
Material: SUS304, SUS316
Capacity: 1500ml/h
Temperature Precision: ±1℃
Minimum Sample Volume: 30ml
Nozzle Type: Two Fluid Nozzle
Seal Of Cyclone/cylinder: Silicone
Inlet Temperature: 105~200℃
Body Material: SUS-304 Stainless Steel
Spray Chamber Material: SUS-304 Stainless Steel & Borosilicate Glass
Possible Particle Size Range: 1-25um
After-sales Service Provided: Online Support
After Warranty Service: Online Support
Local Service Location: None
Certification: CE
Basic Infomation
Certification: CE
Payment & Shipping Terms
Packaging Details: standard export tri-ply wood
Supply Ability: 200 Set/Sets per Year
Product Description
1)The world’s first laboratory spray dryer for Chinese herbal extracts, and it has a non-stick inner wall.
2)The world’s first laboratory spray dryer with the fluidized bed drying function
3)The drying chamber is a mixture of stainless steel, so it is both durable and easy to observe the 4)experimental process.It is small in size and it produces low noise. It is also easy to install and operate.
Parameters of YC-1800 lab spray dryer
Power
4000w
voltage
220V
Frequency
50/60 HZ
Capacity
1500ml/h
Airflow
0~330m³/h
Max.inlet temperature
200 °C
Heating power
3500W
Temperature precision
±1°C
Compressed air
4.2m³/h, 2~5 bar
Nozzle jet
0.7mm standard ( 0.5/0.8/1.0/1.5/2.0mm avaliable )
Particle size
1~25 um
Operation mode
Automatic/Manal
1. Our machines are of good quality and durable . A customer bought our machine in 2005 and it is still in use today .
2. Our machines can bring customers a good use experience. After years of development, we are guided by customer needs and can
skillfully help customers solve problems .
3. We have more than 15 years of export experience. After customers buy the machine, they don't have to worry about packaging and
transportation issues .

You can find us by searching ' Shanghai Pilotech ' in Google Scholar . There are many articles about our machine .
Pilotech started to produce laboratory spray dryer since 2005 . We have over 50 patents and over 15 software copyrights . Our company is also the only manufacturer in the world that can produce a wide range of spray dryers , including benchtop spray dryer ，vacuum spray dryer, spray-freezing dryer , all-in-one machine for spray drying and fluidized granulator , organic solvent spray ，dryer and nano spray dryer . Our laboratory spray dryer has many advantages , such as stable performance , easy operation and durable service . For this reason , the product is very popular among researchers . It has occupied more than 70% of the market in China . Around the world , there are more than 3500 scientific institutions and companies that are using our equipment and complete services .
The materials we export are fumigation-free tri- plywood . Every piece of goods is packaged under strict standards . In the past 16 years , we have exported to more than 60 countries , such as the United States , Canada , Russia , Australia , South Korea , Brazil , France , Pakistan , etc .
