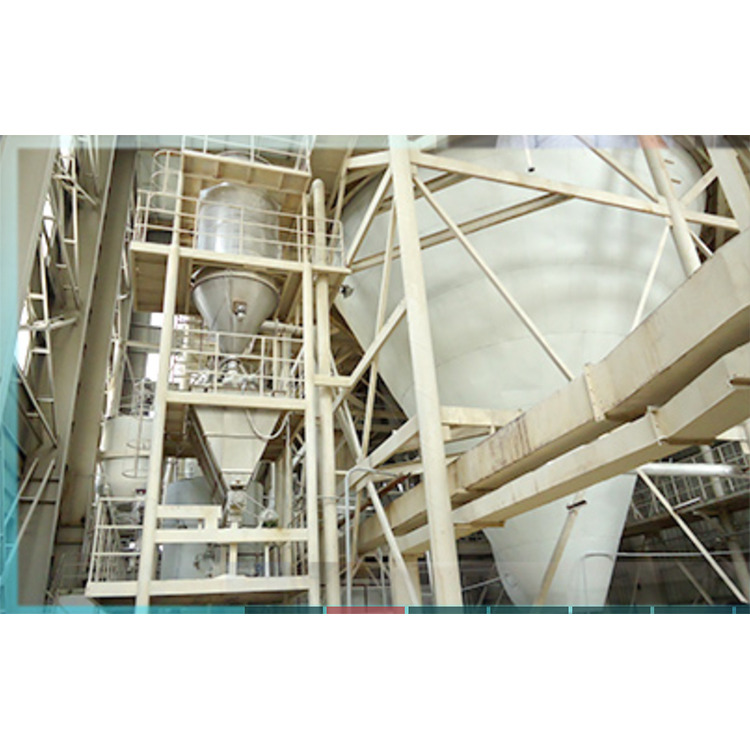

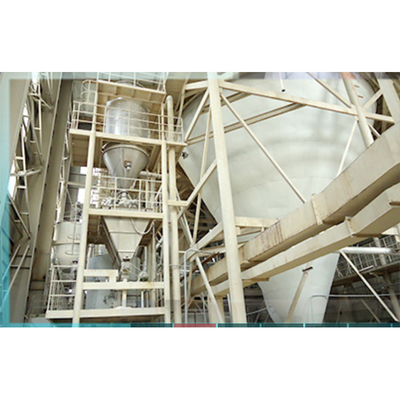

YPG Pressure Spray Dryer
Brief Introduction
The material is sprayed into fine mist by nozzle on the top of tower, Follow the heat wind, the material is dried. The machine with high collection rate and no stick on the wall characteristic. Save energy, high efficiency, Particularly suitable for heat sensitive material.it is widely used in food, dyestuff, chemical industry and etc
Working principle
The liquid material is pumped in through diaphragm pump. The liquid material can be atomized into tiny droplets. Then it gathers with hot air falling off. Most parts of powder material will be collected from the outlet of the main tower bottom. For the fine powder, we will still continuously collect by the cyclone separator and cloth bag filter.
Features
1. High collecting rate, no stick on the wall.
2. Fast drying, high efficiency, energy saving.
3. Particularly applicable for heat sensitive material
4. Good for raw materials that are large in viscosity, paste material.
5. The nozzle is simple in structure, convenient in maintenance and low cost in operation.
6. The machine heating system is very flexible, we can configure it based on the customer site conditions such as steam, electricity, gas furnace and etc.
Control systems have more choices, such as push button, HMI+PLC and etc.
Scope of applications
1. Food Industry: Fatty milk power, protein, cocoa milk powder, substitute milk powder, egg white(York), food and plant, oats, chicken juice, coffee, instant dissoluble tea, seasoning meat, protein, soybean, peanut protein, hydrolysate and so forth , sugar, corn starch, corn syrup, glucose, pectin, malt sugar, sorbic acid potassium and etc.
2. Pharmaceutical industry: Traditional Chinese medicine extract, ointment, yeast, vitamin, antibiotic, amylase, lipase and etc.
3. Plastic and resin: AB, ABS emulsion, uric acid resin, phenolic aldehyde resin, urea-formaldehyde resin, formaldehyde resin, polythene, poly-chloroprene and etc.
4. Detergent: common washing powder, advanced washing powder, soap powder, soda ash, emulsifier, brightening agent, orthophosphoric acid and etc.
5. Chemical industry: Sodium fluoride(Potassium), alkaline dyestuff and pigment, dyestuff intermediate, Mn3O4, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and etc.
6. Ceramic industry: Aluminum oxide, ceramic tile material, magnesium oxide, talcum and etc.
7. Other industry: calmogastrin, hime chloride, stearic acid agent and etc.
Flowchart
Technical parameters
|
Model |
YPG-50 |
YPG-100 |
YPG150 |
YPG-200 |
YPG-300 |
YPG-500 |
YPG-1000-10000 |
|
Inlet temp(℃) |
140-300 |
||||||
|
Product moisture content(%) |
≤5 |
||||||
|
Material collection(%) |
≥97% |
||||||
|
Evaporation (kg/h) |
50 |
100 |
150 |
200 |
300 |
500 |
1000-10000 |
|
Atomization style (Mpa) |
2-10 |
||||||
|
Electricity heating (kw) |
75 |
120 |
150 |
Temperature below 200 degree, calculate according to the actual condition |
|||
|
Steam+ electricity heating Mpa+kw |
0.5+54 |
0.6+90 |
0.6+108 |
||||
|
Diameter/height of tower (m) |
1.6/8.9 |
2.0/11.5 |
2.4/13.5 |
2.8/14.8 |
3.2/15.4 |
3.8/18.8 |
/ |
Projects pictures
About us
Changzhou Mascot is a professional manufacturer and supplier of drying, mixing, granulating and roasting equipment in China. We have more than 28 years leading experiences in design and manufacture drying, mixing, granulating and roasting equipment. We are top 3 in China drying equipment fields.
The company main products include spray dryer, fluid bed dryer, fluidized granulator, flash dryer, airstream dryer, vacuum dryer, drying oven, mixer, coater and etc. the products are extensively used in food, chemical ,pharmaceutical and other industries. Factory covered area of 62000m², 15 production lines and over 300 qualified working staffs.
Our products already exported to America, Germany, Canada, Russia, Mexica, Poland, Japan, Korea, Thailand, Indonesia, Philippine, etc over 60 countries.
The company has passed ISO9001quality management system , ISO14001 environmental management system, the Occupational health and Safety Management System Confirms to the standard GB/T28001-2011/OHSAS18001:2007, products already got CE, SGS, TUV , UL certification and etc.
Corporate mission: Provide high quality products and super services to our customers
Honor & certificates
Our advantages
Factory show
Manufacturing center
Lean production process
Strictly quality control
Our partners
Exhibition Show
Our service
FAQ:
Q1: Are you a factory or trading company?
A1: We are the manufacturer and have been in industry more than 28 years.
Q2: What is your payment term?
A2:T/T payment to our company bank directly, or by Alibaba’s trade assurance service or by the west union. Our other payment terms also can be accepted after negotiation by both parties.
Q3: How long is your delivery time?
A3:Normally our delivery time is 45 days after we received deposit, if order is big, we need extend the delivery time
Q4: What is your after sales service policy?
A4: We provide 1 year un-conditional warranty, online support, response on time and onsite service.
Q5: What kind of certification and regulation are you follow?
A5: We are certified supplier with CE, UL, TUV, SGS, ISO9001 quality management system, ISO14001 environment management system, etc.
Q6: Do you provide technical training and documentation
A6: Yes we provide, we will training your operators step by step and provide complete of validation.
