Features

Specifications

Type: Spray Drying Equipment, LPG

Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, Milk

Condition: New

Voltage: 380v

Power: 9kw

Dimension(L*W*H): 1.8*0.93*2.2

Key Selling Points: Long Service Life

Warranty: 1 Year

Weight (KG): 1200

Applicable Industries: Food & Beverage Factory, Food Shop, Food & Beverage Shops, Advertising Company

Showroom Location: None

Marketing Type: New Product 2020

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Warranty Of Core Components: 1 Year

Core Components: Motor

Heating Method: Electric Heating

Material: SUS304, 304 Stainless Steel

Heating Source: Natural Gas,ELECTRIC,Steam

Capacity: 5L

Color: Silver

Feature: High Quality

Installation: Engeiner Guid

Temp. Range: 350 Can Adjust

Product Name: Mini Juice Powder Instant Coffee Milk Spray Dryer Price

Basic Infomation

Payment & Shipping Terms

Packaging Details: we use wooden box to load small mini spray dryer

Supply Ability: 120 Set/Sets per Day

Product Description

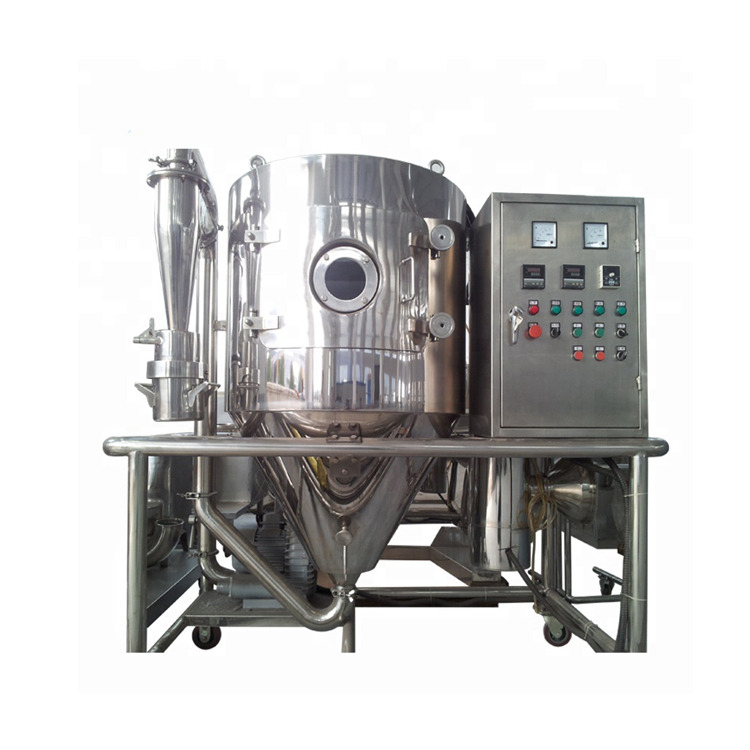

LPG series high speed centrifugal spray dryer machine

(Spray drying)Atomizing drying machine is the high efficient drying equipment, to make dry powder or granule from liquid, emulsion, suspension and pumpable pasty liquid, especially for thermosensitive material, it can keep color, original flavor and chemical feature of raw material, and the finished dry powder or granule have good quality,purity, fluidity andsolubleness.

This equipment features by high accuracy & speed & efficiency, simple production process, labor-cost saving, widely applied in the industry of chemical, food, pharmacy, biochemistry, light industry,etc.

Description :
After fresh air is filtered and heated,it enters into the air distributor which on the top of the drier.The hot air in spiral form equably enters into the drying room.When liquid raw material arepassed through the high-speed centrifugal sprayer on the top of the tower,it will be rotated and sprayed into the extreme slim mist liquid beads.Raw material can be dried to the final products instantly while it contact with the heatedair.Finished products are discharged continuously from bottom of the drying tower and cyclones segregator. Wasted air is discharged from blower.

Model	LPG-5	LPG-25	LPG-50	LPG-200-2000
Tem of air inlet	140-350 adjustable
Tem of air outlet	80-90
Max. water evaporation(kg/h)	5KG	25KG	50KG	200-2000
Transmission type of atomizor	By air compressed	Mechanical
Max.rotary speed(r.p.m)	25000	180000	18000	8000-15000
Heating resource	Electric heating way			Steam+electricity,fuel oil, gas, airheater
Max. Heating power(kw)	9	36	72
Overall size(m)	1.8×0.93×2.2	3×2.7×4.26	3.5×3.5×4.8	According to circumstance
Dry powder recycled(%)	≥95	≥95	≥95	≥95
please note :Any capacity we can made .

Features of LPG spray dryer

* High drying efficiency
* The finished power or granule has good homogeneity, fluidity and solubility.
* Simple and convenient operation
* Mechanical atomizer is adopted, and driven by gear, speed is stable, which make sure the fogdrop is uniform.
* The direction and angle of hot air distributor is adjustable, which ensure the fogdrop fully contact hot air. .
* Conjunction elbow is made of sanitary degree steel pipe, smooth enough to avoide matereial blocked inside the pipe.
* Wide application: food, chemicals, ceramics, basic dyestuff, etc.
