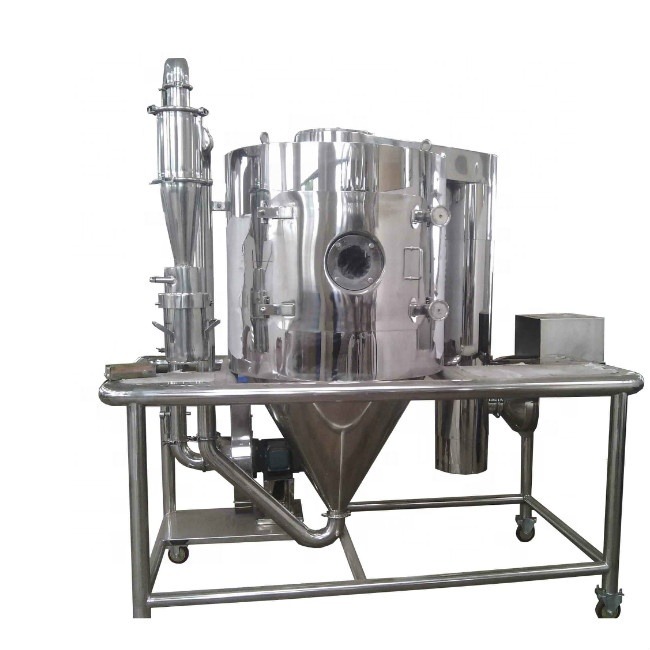

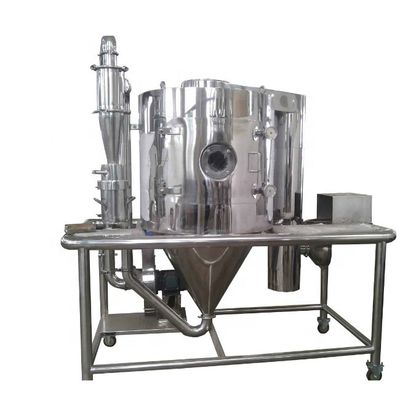

Medicine Curing Commercial 9000W Lab Spray Dryer Machine

1.0 Sets
MOQ
Medicine Curing Commercial 9000W Lab Spray Dryer Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Spray Drying Equipment
Application: Medicine Processing, Food Processing
Condition: New
Voltage: 380V
Power: 9000
Key Selling Points: Energy Saving
Warranty: 1 Year
Weight (KG): 1200
Applicable Industries: Manufacturing Plant
Showroom Location: None
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Pump, Motor
Evaporation Capacity(kg/h): 5
Heating Method: Electric Heating
Material: SUS304, SUS304L
Basic Infomation
Payment & Shipping Terms
Packaging Details: wooden case
Supply Ability: 100 Set/Sets per Month
Product Description
Products Description

9000W lab commercial spray dryer machine

Atomizing drying machine is the high efficient drying equipment, to make dry powder or granule from liquid solution, emulsion, suspension and pumpable pasty liquid, especially for thermosensitive material, it can keep color, original flavor and chemical feature of raw material, and the finished dry powder or granule have good quality,purity, fluidity and solubleness. This equipment features by high accuracy & speed & efficiency, simple production process, labor-cost saving, widely applied in the industry of chemical, food, pharmacy, biochemistry, light industry,etc.
Main Feature：
 * High drying efficiency
* The finished power or granule has good homogeneity, fluidity and solubility.
* Simple and convenient operation
* Mechanical atomizer is adopted, and driven by gear, speed is stable, which make sure the fogdrop is uniform.
* The direction and angle of hot air distributor is adjustable, which ensure the fogdrop fully contact hot air.
* Conjunction elbow is made of sanitary degree steel pipe, smooth enough to avoide matereial blocked inside the pipe.
* Wide application: food, chemicals, ceramics, basic dyestuff, etc.
Model
LPG-5
LPG-25
LPG-50
LPG-150
LPG200-2000
Tem of air inlet
140-350 adjustable
Tem of air outlet
80-90
Max. water evaporation(kg/h)
5
25
50
150
200-2000
Transmission type of atomizor
By air compressed
Mechanical
Max.rotary speed(r.p.m)
25000
18000
18000
15000
8000-15000
Diameter of spraying disc(mm)
50
120
120
150
180-240
Heating resource
electricity
electricity
Steam+electricity,fuel oil, gas, airheater
Max. Heating power(kw)
9
36
72
99
Overall size(m)
1.8×0.93×2.2
3×2.7×4.26
3.5×3.5×4.8
5.5×4×7
According to circumstance
Dry powder recycled(%)
≥95
Details Images
1. After the air passes through the filter and the heating device, it enters the hot air distributor on the top of the drying
room, and the hot air passing through the hot air distributor evenly enters the drying room and rotates in a spiral shape. 2. At the same time, the material liquid is sent to the centrifugal spray head (atomizer) installed at the top of the drying chamber, and the material liquid is sprayed into performance mist droplets.
3. The contact surface area of the material liquid and the hot air is greatly increased, and the water evaporates quickly, and the finished product is dried in a very short time.
4. The powder is recovered by the collection tube at the bottom of the dryer, and the exhaust gas is discharged by the
centrifugal fan.
1. Stainless steel material, arc corner design and polyester powder coated shell, prevents corrosion of acidity and alkaline air effectively.
2. Imported Schneider electrical components which is more stability.
3. PLC control system, make your research more easier and efficient.
4. Build in oil-free air compressor, without any noise.
5. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly.
6. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
7. Innovative tower wall purging device, improves the material recycling rate.
8. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient.
9. In the hot-air flow, 95%~98% of water can be evaporated at a moment. You can finish material drying only in several
seconds. 10. Especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.
Recommend Products
Packing
FAQ
Q1: Where is your factory? How can I visit there?
A1: Our factory location is Changzhou, China.If want to visit our company , you can fly to Shanghai Pudong Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's your advantages compared to your competitors?
A3: Quality and experience, as evidenced by 40 patents and over 35 years of experience.
Q4: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
