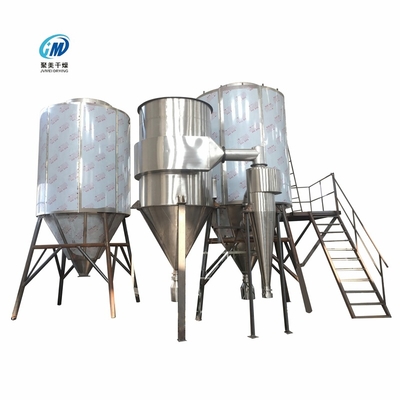

High Efficiency Low Cost LPG Electric Centrifugal Mini Spray Dryer Or High Speed ​​Pneumatic For Powder

1.0 Pieces
MOQ
High Efficiency Low Cost LPG Electric Centrifugal Mini Spray Dryer Or High Speed ​​Pneumatic For Powder
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Spray Drying Equipment
Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Condition: New
Voltage: Custom
Power: Custom, 9~36W
Dimension(L*W*H): Custom
Key Selling Points: Easy To Operate
Warranty: 1 Year
Weight (KG): 2000
Applicable Industries: Garment Shops, Building Material Shops, Food & Beverage Factory, Farms
Showroom Location: None
Marketing Type: Hot Product 2021
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Pump, PLC
Evaporation Capacity(kg/h): 5
Heating Method: Steam Heating
Material: SUS304
Product Name: Spray Dryer Machine
Advantage: Easy Operation High Efficiency
Feature: High Efficiency Low Cost
MOQ: 1 Set
Dryig Process: Continuous Automatic Drying
After-sales Service Provided: Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
Certification: CE ISO
Basic Infomation
Certification: CE ISO
Payment & Shipping Terms
Packaging Details: The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Product Description

Descriptions

The Spray drying is the technology most widely used in the liquid technology shaping and in the drying industry.The drying technology is most suitable for producing solid powder or particle products from liquid materials,such as:solution, emulsion, suspension and pumpable paste states,For this reason,when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies。

Features

LPG series high-speed centrifugal spray dryer consists of liquid conveying, air filtering and heating, liquid atomization, drying chamber, exhaust collection and control system, etc. The characteristics of each system are as follows. 1. Liquid conveying system consists of liquid tank, magnetic filter, pump, etc. to ensure that the liquid enters the atomizer smoothly. 2. Air filtration system and heating system Before entering the heater, the fresh air should pass through the front and rear filters before entering the heater for heating. The heating methods are electric heater, steam radiator, gas furnace, etc. The choice of which method depends on the customer's site conditions. To ensure that the drying medium has high purity when it enters the drying chamber, the heating air should pass through the high-efficiency filter before entering the drying chamber. 3. Atomization system  The atomization system consists of a high-speed centrifugal atomizer with frequency converter, etc. The powder from the high speed centrifugal atomizer is between 40-120 microns. Translated with www.DeepL.com/Translator (free version)

Principle

After been filtered and heated the air enters into the air distrbutor on the top of the dryer.The hot air enters into the drying room in the spiral form and uniformly. Passing through the high-speed centrifugal sprayer on the top of the tower,the material liquid will rotate and be sprayed into the extremely fine mist liquid beads.Trough the very short time of contacting the heat air,the materials can be dried into the final products.The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.

Applications

Chemical Industry： Sodium fluoride(potassium),alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on. Plastics and resin： AB，ABS emulsion,uric acid resin,phenolic aldehyde resin,urea-formaldehyde resin,formaldehyde resin,polythene,poly-chlotoprene and etc. Food Industry： Fatty milk powder,protein,cocoa milk powder,substitute milk powder,egg white(yolk),food and plant,oats,chicken juice,coffee,instant dissoluble tea,seasoning meat,protein,soybean,peanut protein,hydrolysate and so forth. Sugar, corn syrup, corn starch, glucose, pectin, malt sugar, sorbic acid potassium and etc. Ceramic： aluminium oxide,ceramic tile material,magnesium oxide,talcum and so on.
m\parameter\spec
LPG
5
25
50
100
150
200-10000
inlet temperature °C
140-350 automatically controlled
outlet temerature °C
'80-90
Max.water evaporation capacity
5
25
50
100
150
200-10000
centrifugal spraying nozzle transmission mode
compressed air transmission
Mechanical transmission
Rotation speed rpm
25000
18000
18000
18000
15000
8000-15000
Spraying disc diameter mm
50
100
120
140
150
180-
Heat supply
Electricity
Electricity+steam
Electricity+steam,fuel oil and gas
Settled by users themselves
Max.Electric heating power kw
9
36
63
81
99
overall dimensions m
1.8x0.93
x2.2
3x2.7
x4.26
37x3.2
x5.1
4.6x4.2 x6
5.5x4.5
x7
Depends on the concrete conditions
Dried powder restoring tate %
>95
>95
>95
>95
>95
>95
Note:For the water evaporation capacity, material property,the inlet and outlet tempratures,please refer the following diagram for reference.



01
Stainless Steel Material, One Year Warranty


02
Customized Models Available




03
Smooth Running Effect
