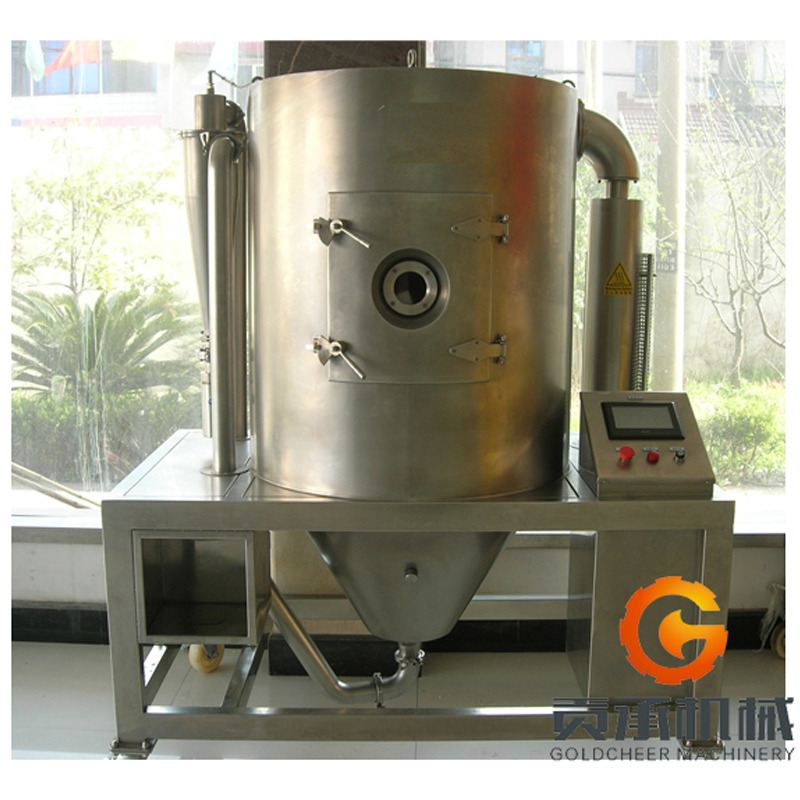

10kg/h stainless steel spray dryer for liquid juice
(1) Rapid drying speed. A short period which generally takes 3~30s, As the liquid materials are atomized into foggy drops of 20~60μm, the surface area reaches 200~5000㎡/m³ and the moisture of materials will be easily vaporized and dried. in the high temperature air current, 95~98% of moisture can be instantly evaporated. the drying only takes a few seconds.
(2) Lower drying temperature. the concurrent type spray drying form is adopted to make the liquid drops flow in the same direction as that of the hot air, though temperature of hot air is relatively higher, the hot air will contact the foggy drops immediately after it enters the drying chamber. the temperature in the chamber drops rapidly and the surface temperature, which is generally 50~60℃, won’t exceed the wet bulb temperature of the heating air. in addition, the staying period of materials in the dryer is short, so the final temperature of materials won’t be too high. therefore, it is very suitable for drying heat sensitive materials.
(3) Wide application. it can be suitable for drying food materials such as milk powder, soy milk powder, fruit and vegetable powder, as well as chemical products.
(4) As the drying is completed instantly, the granules of finished products can basically keep a ball shape similar to liquid drops. the products have good dispersion. fluidity and solubility.
(5) Simplified production process with convenient operation and control.
GoldCheer uses stainless steel 304 for all the machine parts.It has the advantages of good processing performance and high toughness，so it is widely used in industry and furniture decoration industry and food and medical industry
Rapid drying speed. A short period which generally takes 3~30s, As the liquid materials are atomized into foggy drops of 20~60μm, the surface area reaches 200~5000㎡/m³ and the moisture of materials will be easily vaporized and dried. in the high temperature air current, 95~98% of moisture can be instantly evaporated. the drying only takes a few seconds.
We have other production lines for tomato paste, fruit and vegetable juice, tea drink, fruit powder, milk, yoghurt, milk powder, beer brewery equipment.
For the machine safety, We carefully use wooden cases and containers for packing.
Shanghai Goldcheer Machinery Co., Ltd. successfully completed the project of tomato sauce production line in Africa. In technology and after-sales service, we won the praise from the customers.
We supply customers mago paste production line in south America. And our engineers installed and debugged the equipment.We think the convenience of our customers is our pursuit.
We meet our Mexico customers in the Canton Fair. When they come to our stand, they were interested in the lab spray dryer. Now we have make the bussiness with them.
Beacuse of the machine installing, our engineer went to the south America, we provided the mango paste productions line. The customers werevery satisfied with us.
• Shanghai Goldcheer Machinery Co., Ltd. is a high-tech manufacturer of performance food processing machinery. Our company is committed to the design and development of production lines for tomato paste, fruit and vegetable juice, tea drink, fruit powder, milk, yoghurt, milk powder, beer brewery equipment.
• Equipped with advanced machinery and cutting-edge technology, we are able to develop precise food processing equipment such as autoclave, tunnel sterilizer and cooler, tube sterilizer etc. GC Machinery offers comprehensible turn-key solutions, tailor fitted to client-side specifications.
• GC Machinery offers services such as installation, commissioning and operator training. Our highly experienced technical staff can provide detailed troubleshooting. Please feel free to contact us if you have any product or services related inquires. We highly value customer suggestions and feedback. Service representatives are on standby to assist you in finding the perfect purchase.
