Features Gallery Product Description Request A Quote

Features

Specifications

Condition: New

Type: Concentrator

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2021

Warranty Of Core Components: 5 Years

Core Components: Engine, Bearing, Gearbox, Motor, Pressure Vessel, Pump

Application: Powder

Weight (KG): 1000 KG

Warranty: 5 Years

Key Selling Points: High Productivity

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Food Shop, Food & Beverage Shops, Pharmaceutical Industry

Showroom Location: United States, Pakistan, Colombia

After-sales Service Provided: Engineers Available To Service Machinery Overseas

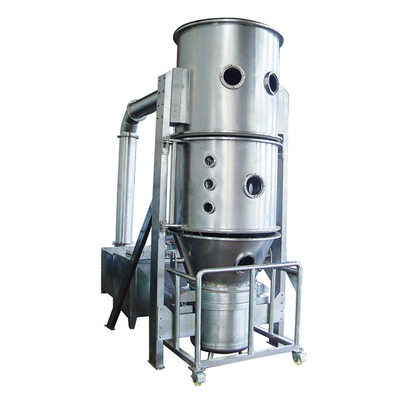

Product Name: GFG120 Industrial Fluid Bed Dryer Machine

Material: 304/316L Stainless Steel

Function: Production Line

Process: GFG120 Industrial Fluid Bed Dryer Machine

Capacity: Produce 370 Million Granules

Variety: GFG120 Industrial Fluid Bed Dryer Machine

Certification: GMP

State: GFG120 Industrial Fluid Bed Dryer Machine

Usage: GFG120 Industrial Fluid Bed Dryer Machine

Basic Infomation

Certification: GMP

Payment & Shipping Terms

Packaging Details: fluid bed dryer packed by wooden case

Supply Ability: 25 Set/Sets per Month

Product Description

Simple Description

The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

Application

1.Drugs granulation and coating.
2.Granulation: Tablet particles, granule particles, capsule particles.
3.Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating.
4.Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food.
5.Pesticide, paint pigment, dry granulation Powder, granules, block materials.

Features

1.By using powder granulation, to improve the liquidity and thinner dust.
2.By using powder granulation, to improve solubility property.
3.Mixing—granulation—drying can be finished in one device (one-step granulation)
4.To adopt antistatic filtering mediums, to ensure safe operation.
5.Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.
6.No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.

Main Technical Data

Model	200
Volume (L)	670
Amount to be treated (kg/per time)	100/300
Power of fan (kw)	30
Consume of steam 0.4MPa(kg/h)	282
Consume of compressed air (m3/min)	1.1
Noise,dB (A)	(fan is installed separately) ≤75
Main machine height (m)	2.34×1.7×3.8

Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.

Q: What payment terms you take?
A: TT, LC, other terms are also workable.

Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.

Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange
everything for you!

Any other doubts about our machine, please feel easy to contact with us.
