Features

Specifications

Product Type: Pharmaceutical

Condition: New

Machine Type: Granulator

Output (kg/h): 750

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2021

Warranty Of Core Components: 1 Year

Core Components: PLC, Engine, Pressure Vessel

Voltage: 110v/220v/380v

Dimension(L*W*H): Custom

Weight (KG): 2000

Power (kW): 45

Warranty: 1 Year

Key Selling Points: High Productivity

Applicable Industries: Food & Beverage Factory, Farms, Construction WorksÂ

Showroom Location: None

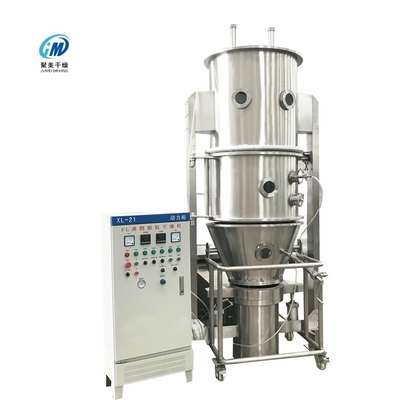

Product Name: FL Series Fluidized Granulator

Application: Granules Making Machine

Keywords: Boiling Granulator

Function: Granlulating

Certification: CE ISO, CE ISO

Temperature: 0-120â„ƒ

After-sales Service Provided: Online Support

After Warranty Service: Online Support

Local ServiceÂ Location: None

Basic Infomation

Certification: CE ISO, CE ISO

Payment & Shipping Terms

Packaging Details: The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Product Description

Principle:

The powder granule in vessel (fluid bed) appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

Features:

1.the processes of mixing ,granulating and drying are completed in one step inside the machine. 2.Turn to the Ex-type of Fluidized bed dryer , we set the explosion release vent on the machine .once the explosion happened , the machine will release the explosion to outside automatically and safely ,it will make very safe condition to the operator . 3.No dead corner . 4.For the loading material , we have choices on vacuum feeding , lifting feeding ,negative feeding and manual feeding for customer . 5. This machine adopts PLC automatic control, all the operation according to the requirements of the user to set the process parameters automatically, can print all the process parameters, the original record is true and reliable. In full compliance with the GMP requirement of pharmaceutical production. 6.For the bag filter , we choose anti-static filtering cloth.

Application :

Pharmaceutical industry : tablet capsule , Low sugar or no Sugar granule of Chinese traditional medicine . Foodstuff :cocoa ,coffee ,milk powder ,juice of granulate ,flavoring and so on . Other industries: pesticide ,feed ,chemical fertilizer ,pigment ,dyestuff and so on. Drying : Power or granule state of wet material . Coating : Protection layer ,color , controlled release ,film,or bowels solved coating of granules and pills.

Spec					FL
Item					3	5	30	300	1000
Vessel	Volume	L	12	22	100	1000	3000
Vessel		diameter	mm	300	400	700	1600	2200
Capability	min	kg	1.5	4	15	150	800
Capability		max	kg	4.5	6	45	450	1200
Fan	velocity	M3/h	1000	1200	1800	7000	13670
		pressure	mmH2o	375	375	480	950	1400
		power	kw	3	4	7.5	37	90
Steam consumption			Kg/h	15	23	70	366	750
Compressed air consumption			M3/min	0.9	0.9	0.9	1.5	4
Weight of the main body			kg	500	700	1000	1800	3500
Steam pressure			Mpa	0.1-0.4
Temperature			°C	Adjustable at the range of room temperature to 120°C
Working time			min	45~90min, but depending on the property of the raw material itself
Collect rate			%	>99
Noise			dB (A)	Noise<75dB (A)
Noise			dB (A)			the main machine should be installed seperately from the fan.
Dimensions of main machine (LxWxH)			m	1.00.62.1	1.20.72.3	1.6* 1.1*2.5	2.82.04.5	42.87.2

Stainless Steel Material, One Year Warranty

Customized Models Available

Smooth Running Effect
